Deye 5kW Hybrid Inverter (1 Phase) – SUN-5K-SG01LP1-EU

R24,599.00

  • Deye 5kW Hybrid Inverter (1 Phase) – SUN-5K-SG01LP1-EU

  • Model SUN-5K-SG01LP1-US/EU
Add to Wishlist
Add to Wishlist
Add to Wishlist
Add to Wishlist
SKU: Deye-8000W-1 Categories: , Tags: , , , , Product ID: 876

Description

  • Deye 5kW Hybrid Inverter (1 Phase)
  • Model SUN-5K-SG01LP1-US/EU

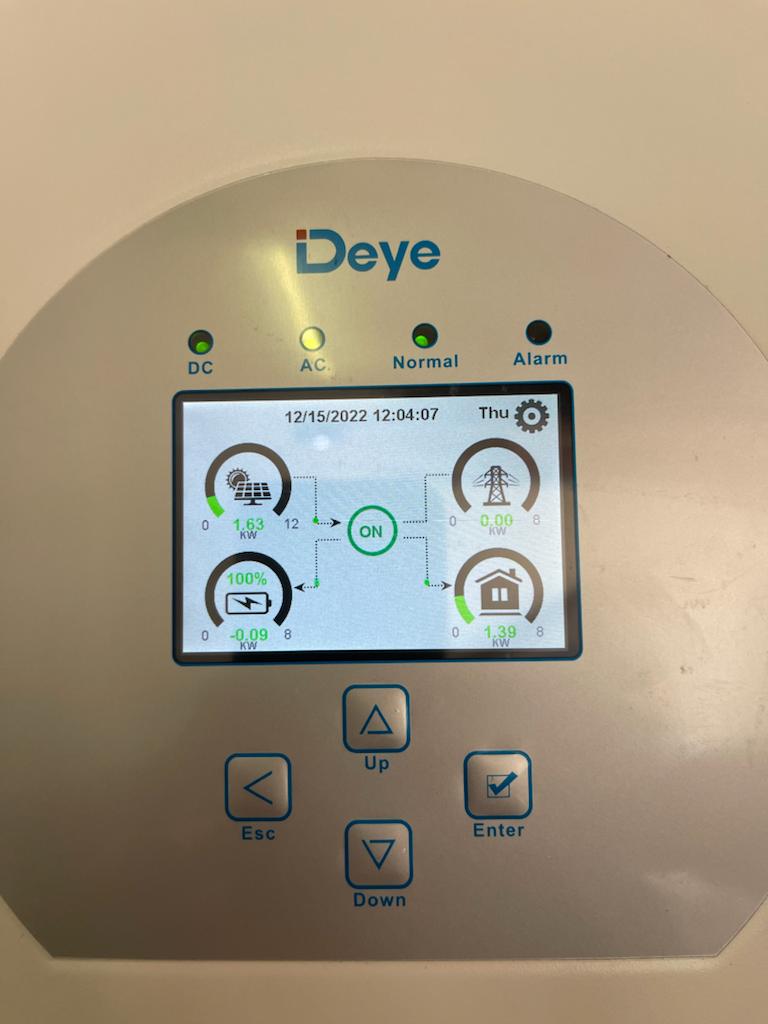

  • Equipped with colorful touch LCD.
  • DC Couple & AC Couple – retrofit existing solar system.
  • Maximum 16pcs parallel for on-grid & off-grid operation – multiple battery parallel supported.
  • 6 Time periods for battery charge/discharge.
  • Storing energy from diesel generator supported.
  • Grid Type: Split Phase, 2/3 Phase, Single Phase
  • Protection Degree: IP65
  • Noise Level: <30dB
  • Maximum Charge/Discharge Current: 190A
  • Charging Strategy for Lithium Ion Battery: Self-adaption to BMS
  • Maximum DC Input Power: 5400W
  • MPPT Range: 150-425V
  • 2 x MPPT
  • Start-up Voltage: 125V
  • AC Output & UPS Power: 5000W
  • Maximum AC Power: 4800W
  • AC Rated Output Current: 36.4/34.8A
  • Maximum AC Current: 40/38.3A
  • Maximum Efficiency: 97.60%
  • Euro Efficiency: 97%
  • MPPT Efficiency: 99.90%
  • Battery Type: Lead-acid or Lithium-ion (Not Included – Sold Separately)
  • Battery Voltage Range: 40-60V
  • Communication with BMS: CAN/RS485
  • Smart Cooling
  • Operation Temperature: -40°C to 60°C
  • Installation Type: Wall Mounted.
  • Product might vary from depicted images.
  • Graphics are for illustrative purposes only.
  • 5 Year Limited Product Warranty. T & C’s Apply
  • Free Delivery Nationwide – South Africa
  • Recommended Solar Panel Configuration:
    • Min 3 Panels – Max 16 Panels (Panel Size: 180W to 560W Panels) (8 Panels per MPPT)
    • Based off Seraphim, Raystech, JINKO, JA Solar & GSun Solar Panel Specifications

Additional information

Weight 32 kg
Dimensions 67 × 42 × 23.3 cm
